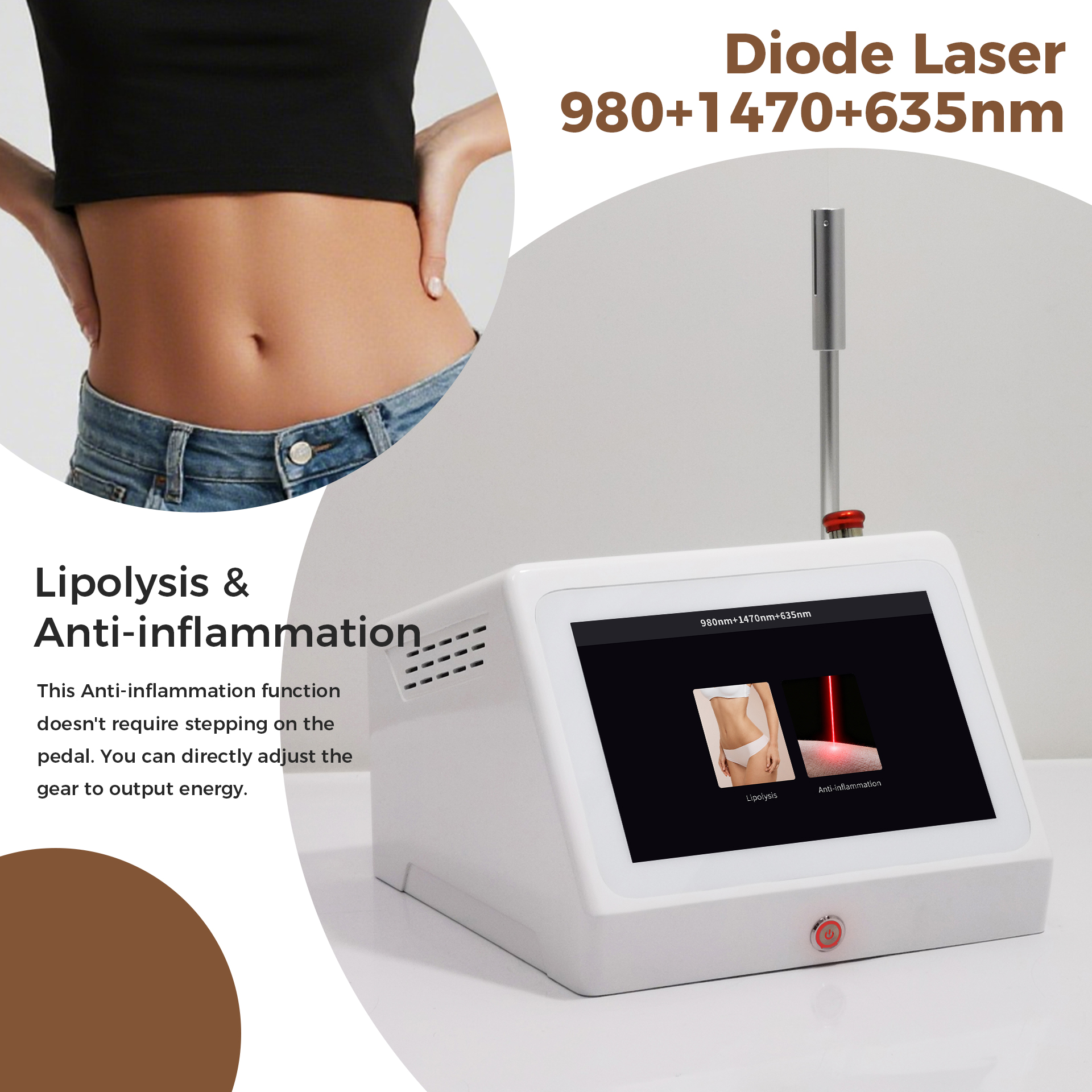

Endolift Laser Machine | 980nm/1470nm/635nm Multi-Wavelength Professional System
Transform Your Practice with Multi-Therapeutic Precision
The Endolift Laser Machine represents the next generation of integrated aesthetic technology. This professional-grade system unifies three clinically proven wavelengths—980nm, 1470nm, and 635nm—into a single, robust platform. Designed for physicians, dermatologists, and med-spa owners, it delivers targeted solutions for body contouring, skin rejuvenation, and anti-inflammatory therapy, enabling you to expand your service portfolio, improve treatment outcomes, and maximize operational efficiency.
From Technical Innovation to Clinical Advantage

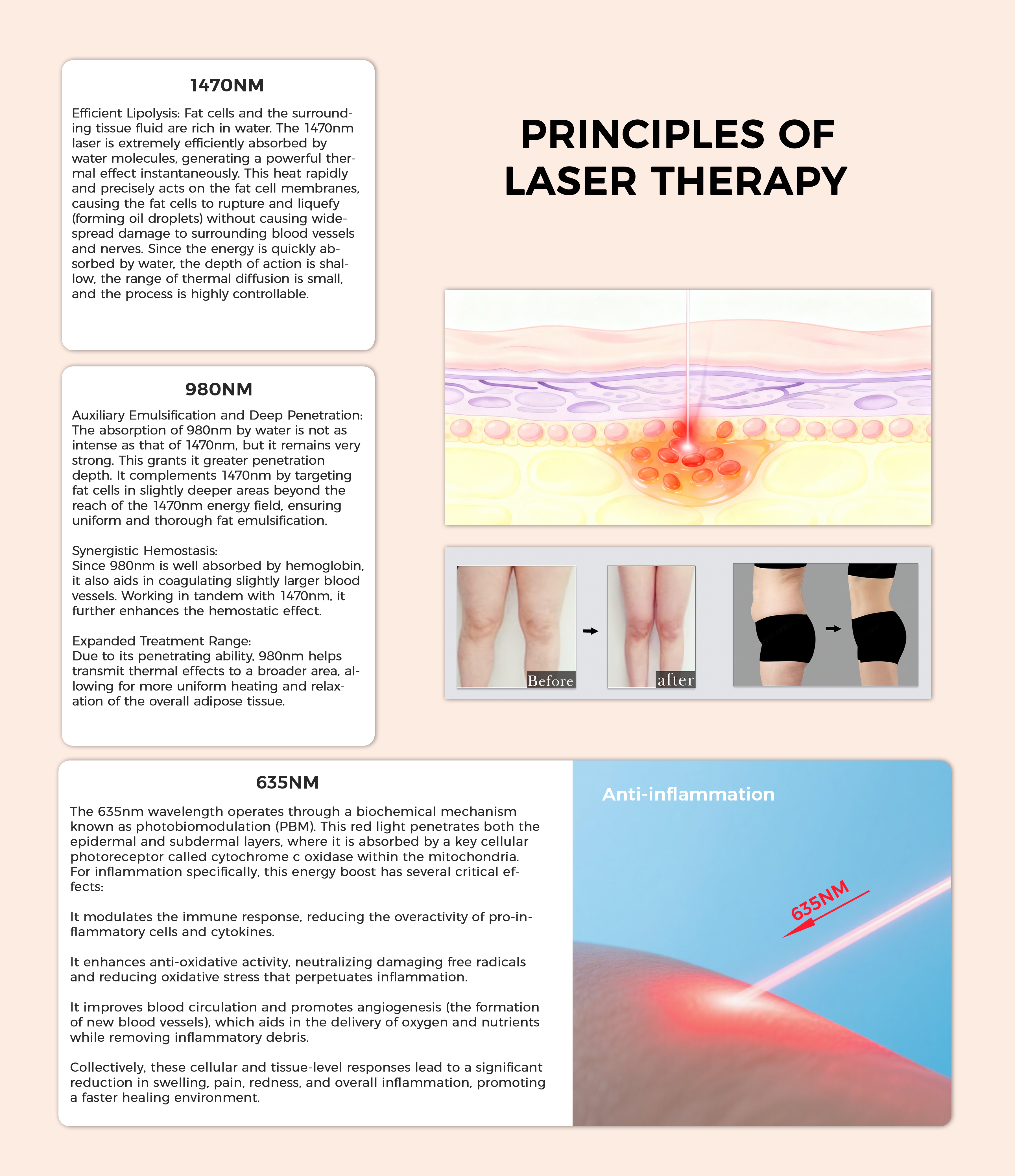

1. 1470nm Wavelength: Targeted, Efficient Lipolysis
- Technical Principle: This wavelength exhibits peak absorption by water molecules. As fat cells and interstitial fluid are water-rich, the 1470nm laser energy is rapidly converted into thermal energy precisely within the adipose tissue.
- Clinical Significance for You: This means highly efficient fat cell liquefaction with a shallow and controlled thermal zone. It minimizes collateral damage to surrounding blood vessels and nerves, leading to predictable fat reduction with reduced patient downtime, less bruising, and a stronger safety profile for delicate areas.
2. 980nm Wavelength: Deep Penetration & Enhanced Safety
- Technical Principle: While strongly absorbed by water, 980nm penetrates deeper than 1470nm. It is also well-absorbed by hemoglobin, aiding in coagulation.
- Clinical Significance for You: This dual-action provides two key benefits: First, it ensures uniform fat emulsification in deeper tissue layers for consistent body contouring results. Second, it promotes hemostasis (blood clotting) during procedures, enhancing procedural safety and allowing for cleaner treatment fields, which is crucial for practitioner confidence and patient comfort.
3. 635nm Wavelength: Advanced Anti-Inflammatory & Healing Therapy
- Technical Principle: Operating via photobiomodulation, 635nm red light is absorbed by cellular mitochondria, stimulating a cascade of biological responses including reduced pro-inflammatory cytokines and increased circulation.
- Clinical Significance for You: This transforms your device from a purely ablative tool into a comprehensive healing system. You can effectively treat post-procedure inflammation, accelerate recovery after lipolysis, and independently address conditions like acne, eczema, and chronic ulcers. It adds a valuable restorative service to your menu, helping to attract clients seeking non-invasive healing solutions.
The Synergistic Advantage: Using these wavelengths in combination or sequence allows for sophisticated treatment protocols. For example, performing lipolysis (1470/980nm) followed by anti-inflammatory therapy (635nm) in the same session can potentially improve patient comfort and streamline the recovery process.
Key Features Designed for the Professional Environment
- Integrated Multi-Wavelength Platform: Consolidate multiple devices into one, saving capital investment and valuable clinic space while offering a diverse range of treatments.
- 12.1-Inch Intuitive Touchscreen Interface: Features a clear, multi-language display for easy parameter adjustment, treatment tracking, and staff training. Reduces operational complexity.
- Fiber-Optic Delivery System: Utilizing SMA-905 connectors with various fiber diameters (200μm-800μm), providing flexibility for different treatment depths and precision requirements.
- Dual Operation Modes: Switch between Pulse Mode for controlled, fractional treatments and Continuous Mode for efficient coverage of larger areas or specific vascular work.
- Comprehensive Safety Suite: Includes a 650nm aiming beam for pinpoint accuracy, protective eyewear for specific wavelengths, and an air-cooling system to maintain device stability during prolonged use.
Expand Your Treatment Offerings
This system is indicated for a wide spectrum of professional applications, allowing you to cater to a broader client base:
- Aesthetic & Body Shaping: Lipolysis, double chin reduction, skin tightening, collagen stimulation.
- Dermatology & Vascular: Vascular lesion and spider vein removal, varicose vein treatment (EVLT).
- Anti-Inflammatory & Healing: Acne treatment, skin rejuvenation, eczema, herpes outbreaks, pain relief therapy.
- Specialized Treatments: Onychomycosis (nail fungus) treatment, wound and ulcer management.

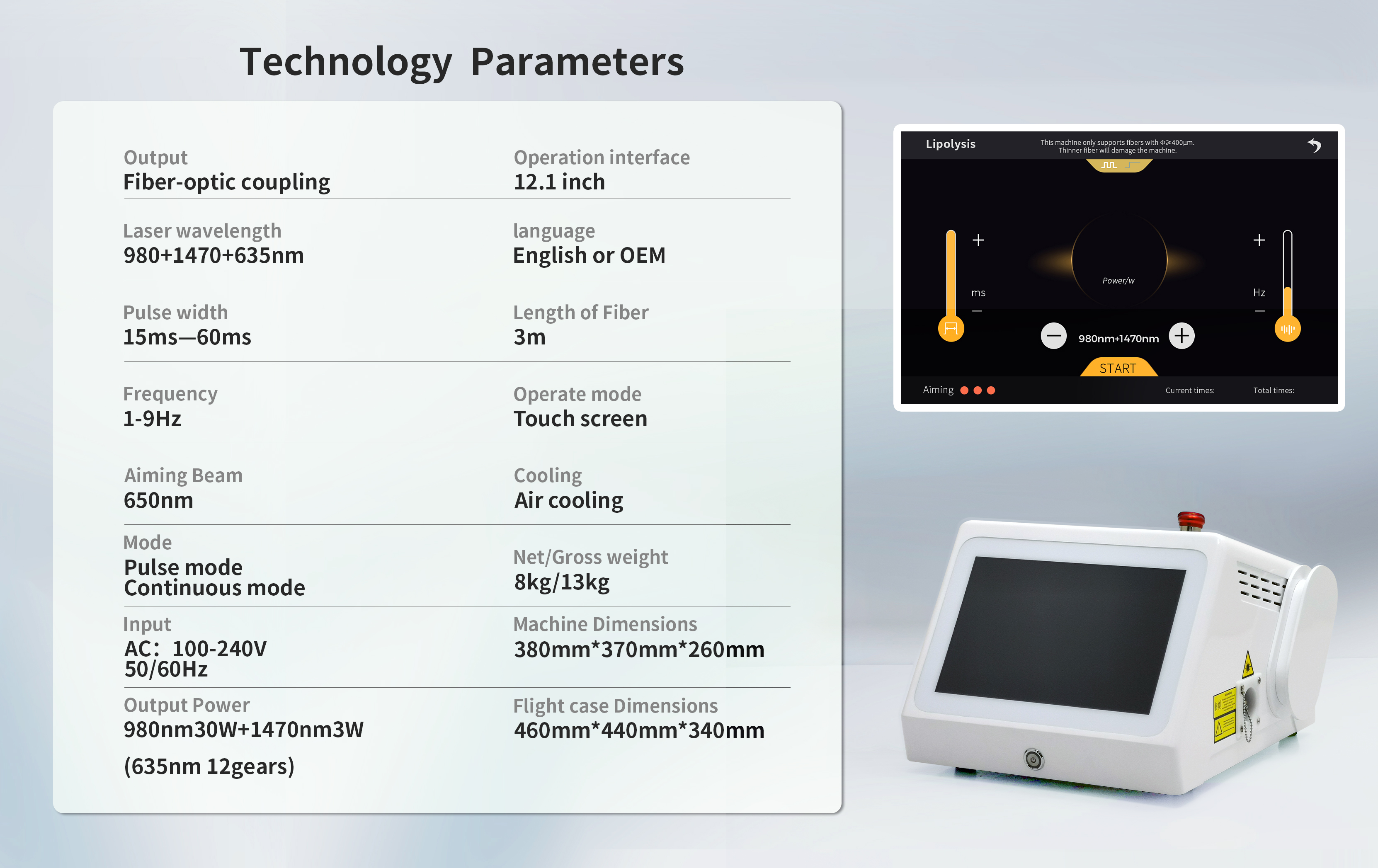

Complete Technical Specifications
| Parameter Category | Specification Details |
|---|---|
| Laser Specifications | Wavelengths: 980nm, 1470nm, 635nm (Triple System) |
| Output Power: 980nm (30W), 1470nm (3W), 635nm (12 Adjustable Gears) | |
| Operation Modes: Pulse Mode & Continuous Mode | |
| Pulse Width Range: 15ms – 60ms | |
| Frequency Range: 1Hz – 9Hz | |
| Aiming Beam: 650nm (Visible Red) | |
| System Configuration | Fiber Optic: SMA-905 Connector, Standard 3m Length |
| Available Fiber Diameters: 200μm, 400μm, 600μm, 800μm | |
| Cooling System: Integrated Air Cooling | |
| Interface & Control | Display: 12.1-inch Touch Screen |
| Languages: English (OEM Languages Available on Request) | |
| Physical Specifications | Machine Dimensions (LxWxH): 380mm x 370mm x 260mm |
| Net / Gross Weight: 8kg / 13kg | |
| Flight Case Dimensions: 460mm x 440mm x 340mm | |
| Power Requirements | Input: AC 100-240V, 50/60Hz (Universal Voltage) |
Package Includes:
Main console, optical fiber, protective glasses (set for 980/1470nm & 635nm), foot pedal, universal power cable, handle, storage rod, user manual, and a durable aluminum flight case for transport and storage.
Why Partner with Shandong Moonlight?
Choosing our Endolift Laser Machine means investing in a device backed by nearly two decades of industry expertise. Shandong Moonlight Electronic Technology Co., Ltd. is committed to supporting your business growth with reliable technology and professional partnerships.
Our Commitment to Quality:
- Proven Manufacturing Standards: Our products are manufactured in internationally standardized dust-free facilities.
- Global Compliance: The system is designed and tested to meet CE and ISO standards, with relevant FDA compliance for specific markets.
- Comprehensive Warranty & Support: Backed by a Two-Year Warranty and supported by a 24-Hour After-Sales Service team to ensure minimal downtime.
- Customization Options: We offer full OEM/ODM services, including custom branding, logo design, and packaging, with a low Minimum Order Quantity (MOQ) of 1 piece.
Take the Next Step in Aesthetic Technology
The Endolift Laser Machine is more than just equipment; it is a strategic investment in the versatility and future growth of your practice. Experience the power of integrated wavelength technology designed for superior results and operational simplicity.
Contact us today to:
- Request a detailed quotation and specification sheet.
- Discuss OEM/ODM customization opportunities for your brand.
- Learn about clinical protocols and application training.
- Inquire about shipping, warranty, and after-sales support details.
