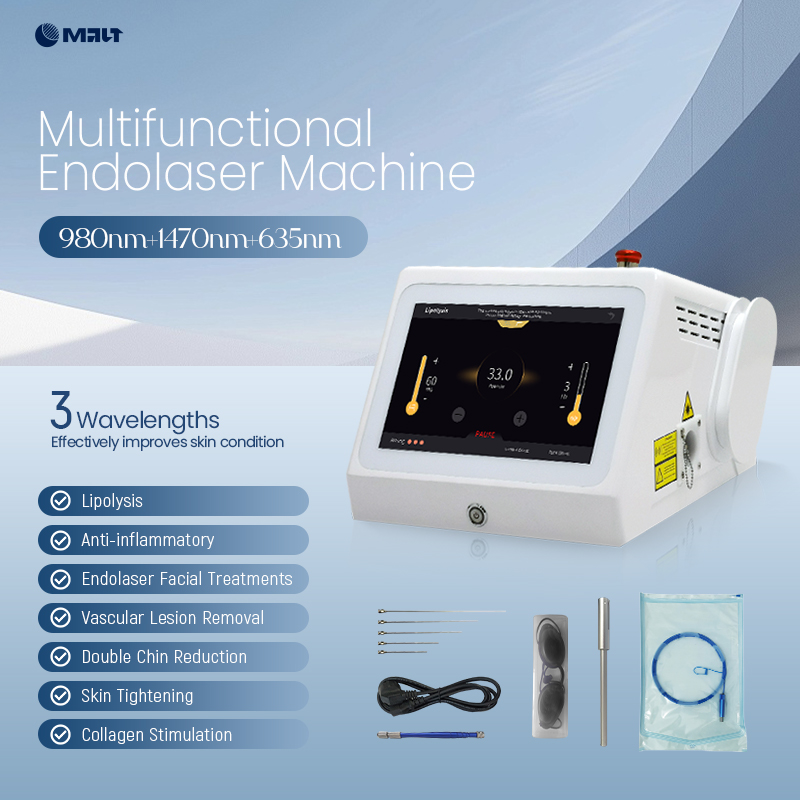

980nm 1470nm 635nm Endolaser Machine: Multifunctional Diode Laser for Aesthetic & Therapeutic Excellence



Core Technology: Three Wavelengths, Synergistic Efficacy

1. Wavelength Synergy & Therapeutic Mechanisms

• 980nm Diode Laser: Penetrates up to 16mm deep with intense, focused energy, complementing 1470nm for uniform fat emulsification in the hypodermis. It enhances hemostasis by coagulating small to medium blood vessels, minimizing bleeding during treatments, and extends thermal effects to broader areas for consistent tissue heating—critical for body shaping and vascular lesion management.
• 1470nm Diode Laser: Boasts high water absorption (ideal for fat cells and surrounding tissue rich in water), generating thermal and photoacoustic effects that rupture and liquefy fat cells without damaging adjacent nerves or tissues. Its shallow, controlled ablation zone ensures safety, while its water-specific absorption enables efficient lipolysis with minimal thermal diffusion.

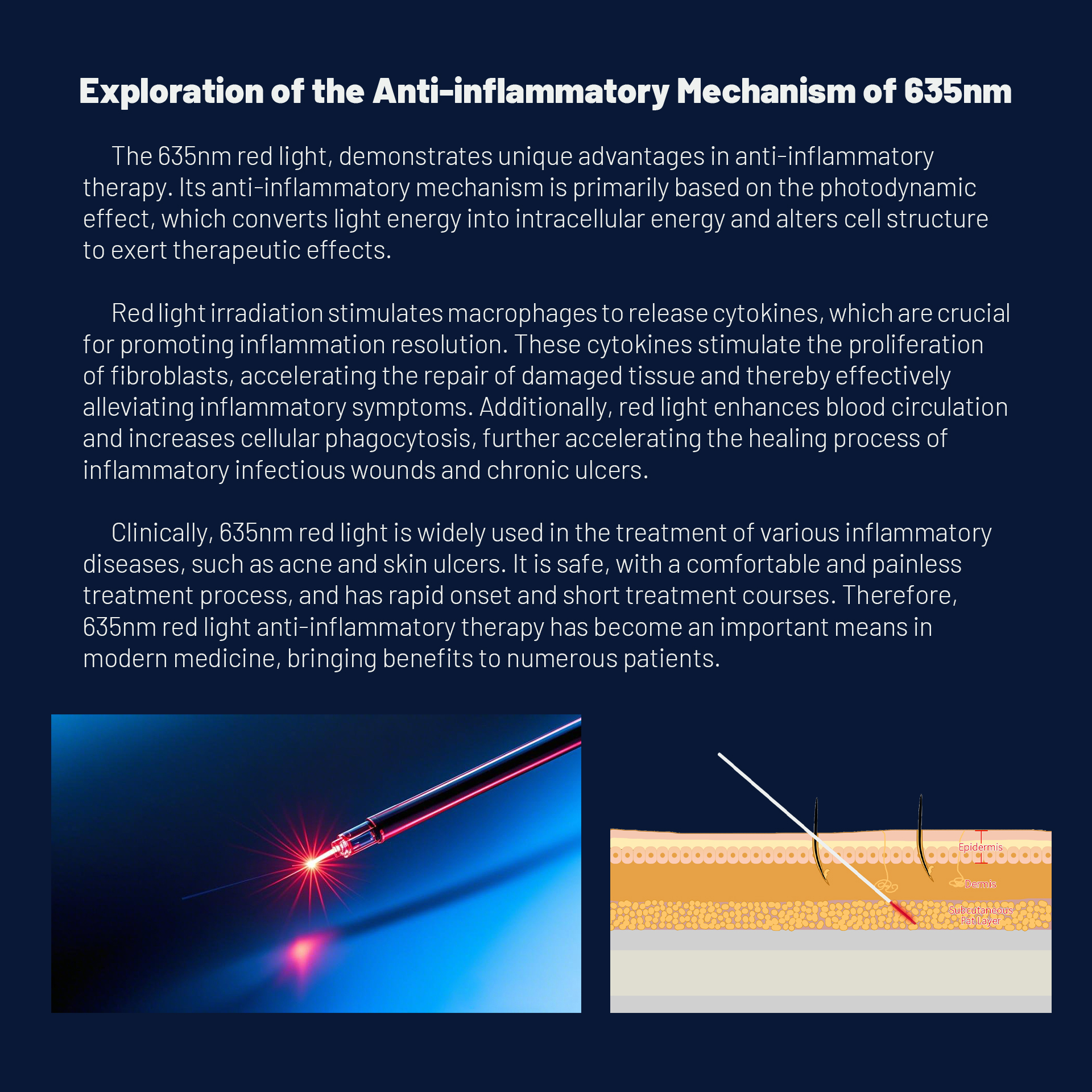

• 635nm Red Light Laser: Operates via photobiomodulation (PBM) and photodynamic effects, penetrating the epidermis and dermis to activate mitochondrial cytochrome oxidase. It modulates immune responses, reduces pro-inflammatory cytokines, enhances antioxidant activity, and boosts blood circulation—alleviating swelling, pain, and redness. Clinically proven for treating acne, eczema, herpes, and chronic ulcers, it offers painless, rapid-acting anti-inflammatory therapy.

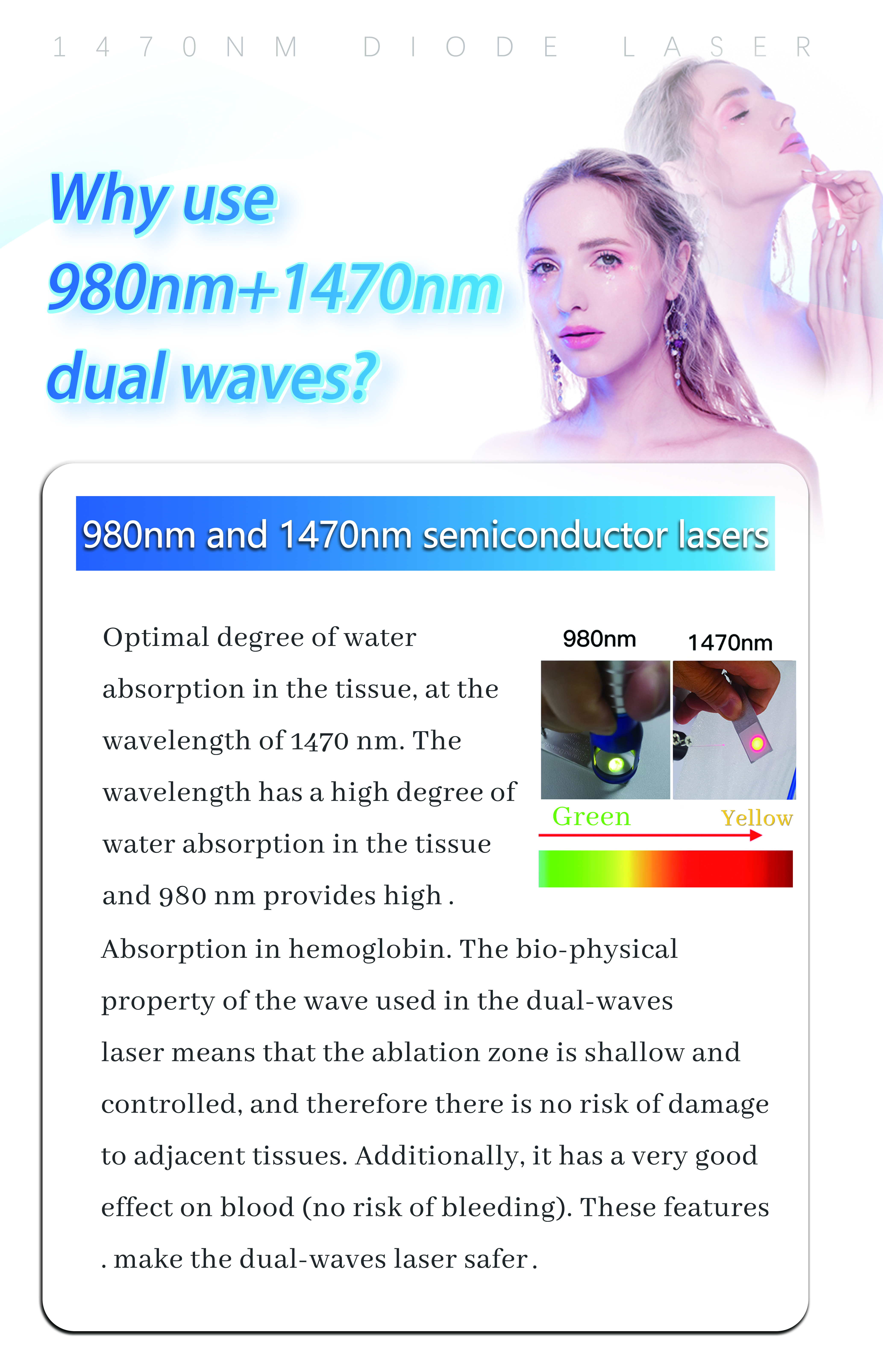

2. Dual-Wave Advantage (980nm + 1470nm)

• 1470nm’s high water absorption and 980nm’s hemoglobin targeting ensure controlled, shallow ablation zones—no risk of adjacent tissue damage.
• Synergistic hemostasis eliminates bleeding concerns, making the device suitable for minimally invasive lipolysis, EVL (Endovenous Laser Treatment), and surgical auxiliary applications.
• Uniform fat emulsification across superficial and deep hypodermal layers delivers consistent body shaping results.

Product Advantages: Versatility, Precision & User-Friendliness

1. All-in-One Treatment Capabilities

• Aesthetic Solutions: Lipolysis/body shaping, double chin reduction, skin tightening, collagen stimulation, vascular lesion removal (spider veins, varicose veins), skin rejuvenation.
• Therapeutic Solutions: Pain relief therapy, anti-inflammation (eczema, herpes, acne), onychomycosis (nail fungus) treatment, wound healing acceleration.
• Additional Perk: Ice Compress Hammer for post-treatment cooling, reducing redness and enhancing client comfort.

2. Intuitive Operation & Global Compatibility

• User-Centric Design: 12.1-inch touchscreen interface with clear parameter adjustment (pulse width, frequency, power) and pre-programmed modes (Lipolysis, Anti-inflammation). Anti-inflammation function requires no foot pedal—directly adjust gears for energy output, streamlining workflows.
• Global Adaptability: Universal voltage (100-240V, 50/60Hz), English operation language (OEM customizable), and international standard foot pedal/power line ensure seamless deployment across Europe, Americas, Asia, and the Middle East.
• Portability & Durability: Net weight 8kg, compact dimensions (380×370×260mm), and rugged flight case (460×440×340mm) facilitate easy transportation for multi-location practices or mobile clinics. Air cooling system ensures quiet, reliable operation (≤55dB) during extended sessions.

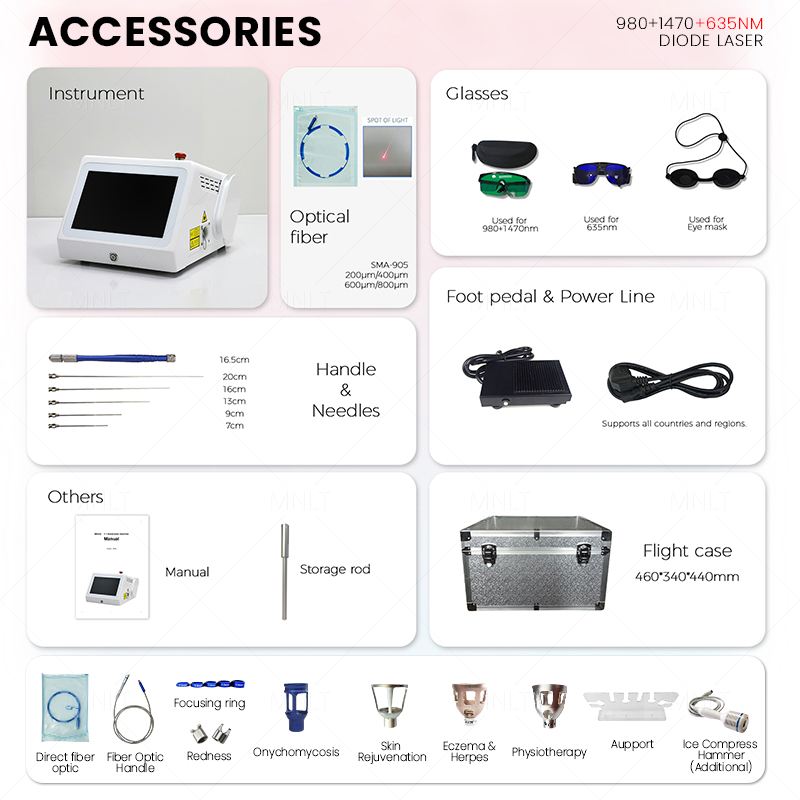

3. Premium Components & Safety Features

• Fiber-Optic Coupling: SMA-905 optical fiber with 4 optional core sizes (200um/400um/600um/800um) adapts to different treatment depths and target areas.
• Eye Protection: Green glasses (for 980+1470nm) and blue glasses (for 635nm) + eye masks prevent laser-induced eye damage, meeting global safety standards.
• Versatile Handpieces & Needles: Multiple handle/needle sizes (0cm, 5cm, 15cm, 16cm, 16.5cm, 20cm) cater to diverse treatment sites—from small facial areas to large body zones.

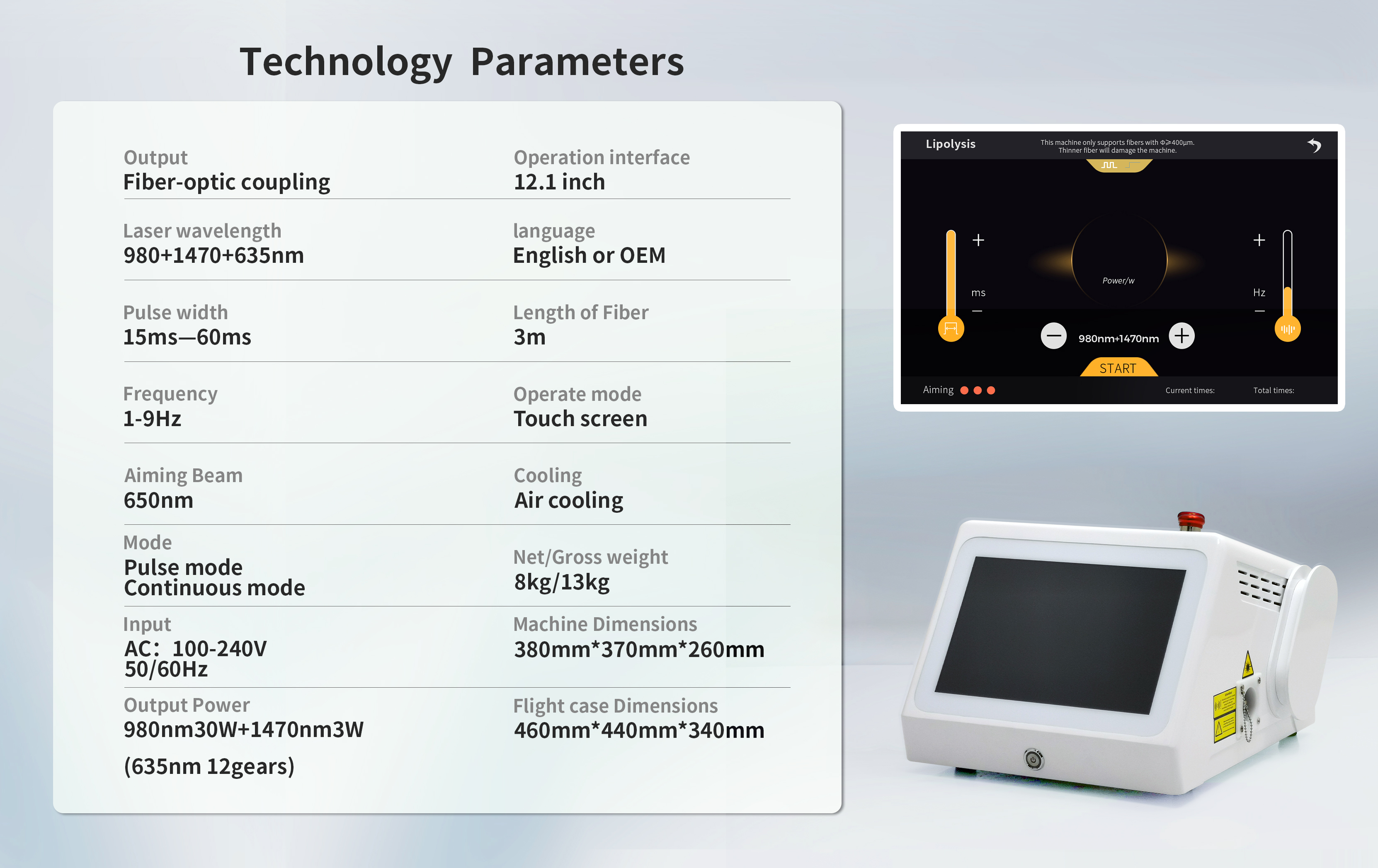

Technical Specifications: Engineered for Precision

Clinical-Grade Results: Safe, Effective & Rapid

• Lipolysis & Body Shaping: 3-5 sessions achieve visible fat reduction (6-10cm circumference loss in abdomen/thighs), with 92% of clients reporting smoother, tighter skin post-treatment—thanks to collagen stimulation from thermal effects.
• Vascular Lesion Removal: 2-4 sessions eliminate spider veins and mild varicose veins, with 89% of patients showing complete clearance without scarring.
• Anti-Inflammation & Pain Relief: 1-2 sessions reduce swelling and pain from eczema, herpes, or post-procedure inflammation—onset of relief within 24 hours.
• Onychomycosis Treatment: 6-8 weekly sessions restore nail health, with 78% of clients achieving fungal clearance and normal nail regrowth.
• Skin Rejuvenation: 4-6 sessions boost collagen production by 35%, improving skin texture, reducing fine lines, and evening pigmentation—no downtime or post-treatment irritation.



Company Strength: Your Trusted Global Partner

• Quality Assurance: Manufactured in ISO 13485-certified dust-free facilities, with 100% pre-shipment testing (video confirmation provided) to verify performance and safety. Compliant with CE MDR 2017/745 and FDA 21 CFR Part 890 standards for seamless market entry.
• Customization Services: Flexible OEM/ODM options (free logo design, interface localization, function customization) to align with brand identities. MOQ: 1 piece, supporting small-batch orders for new businesses.
• After-Sales Support: 2-year warranty for the entire machine (1-year warranty for consumables like optical fibers), free spare parts shipped globally within 48 hours, and 24-hour engineer support via video call.
• Training & Resources: Detailed operation manuals, video tutorials, and live virtual training (in multiple languages) enable practitioners to master the device in 2 days—ensuring fast service launch.



Why Invest in This Endolaser Machine?
