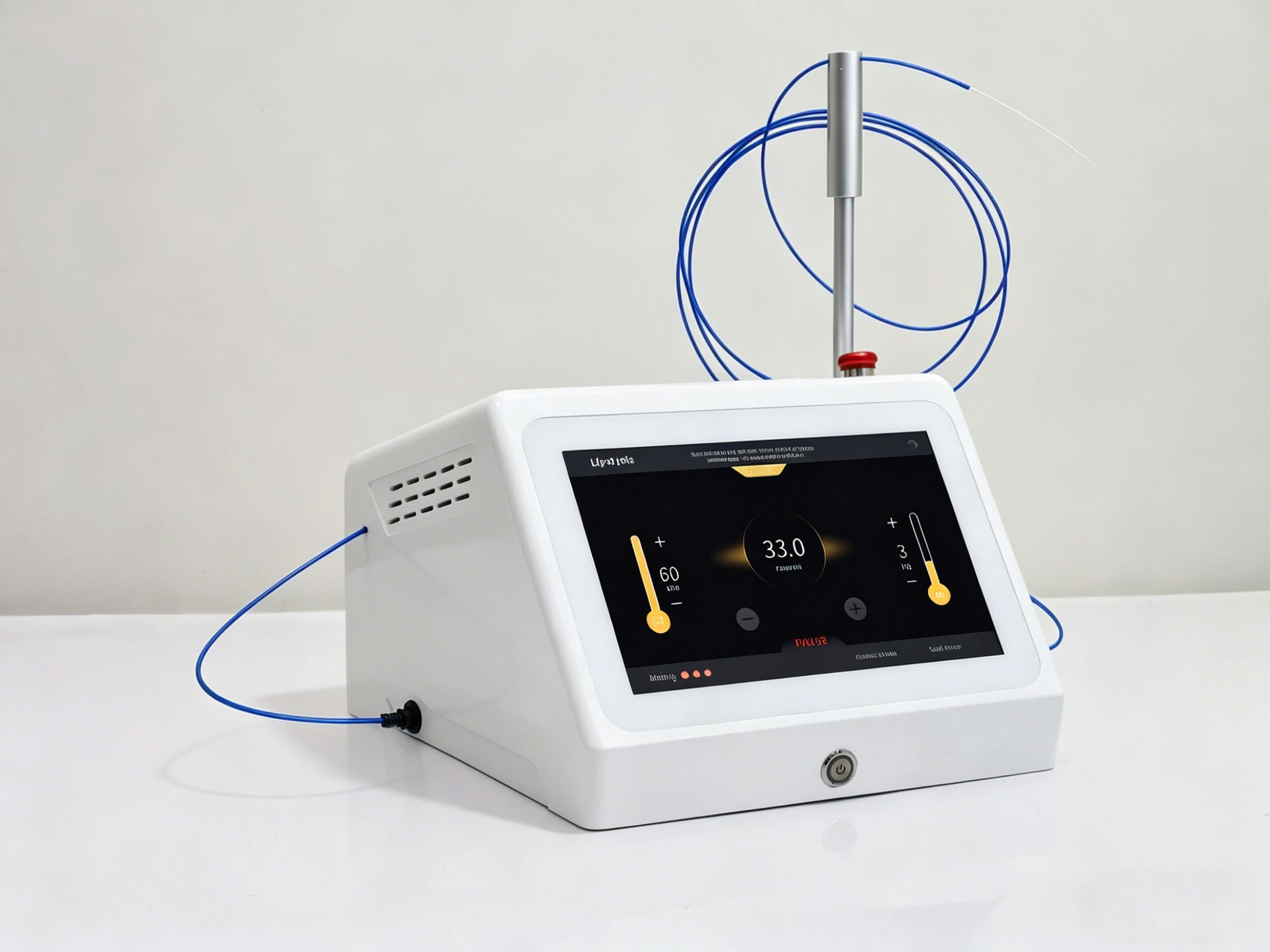

Manufactured under MNLT brand, this triple-wavelength diode laser machine integrates 980nm, 1470nm and 635nm laser technology into one compact device. It serves professional clinics, beauty salons and medical rehabilitation centers for endolaser lipolysis, vascular removal, skin rejuvenation, physiotherapy and inflammatory relief. With flexible pulse & continuous working modes, intuitive touch screen operation and comprehensive treatment capabilities, it becomes an all-in-one laser solution for body shaping, lesion elimination and skin health care. Supporting small-batch wholesale and personalized OEM & ODM customization, the device meets diversified business deployment demands of global aesthetic and medical institutions.
Overall Functional Overview
Equipped with a clear 12.1-inch touch screen, the machine displays core working modes including Lipolysis and Anti-inflammation. Multiple practical treatment functions are available to meet diverse clinical demands:
- Vascular removal & redness and spider veins elimination
- Physical pain relief therapy
- Onychomycosis & nails fungus removal
- Anti-aging skin rejuvenation
- Eczema and herpes lesion treatment
- Endolaser lipolysis, fat dissolving and body contouring
- Varicose veins rehabilitation
- Additional ice compress hammer cooling care
Other advanced facial and body treatment effects cover double chin reduction, skin tightening and natural collagen stimulation, realizing one machine for multiple aesthetic and medical purposes.

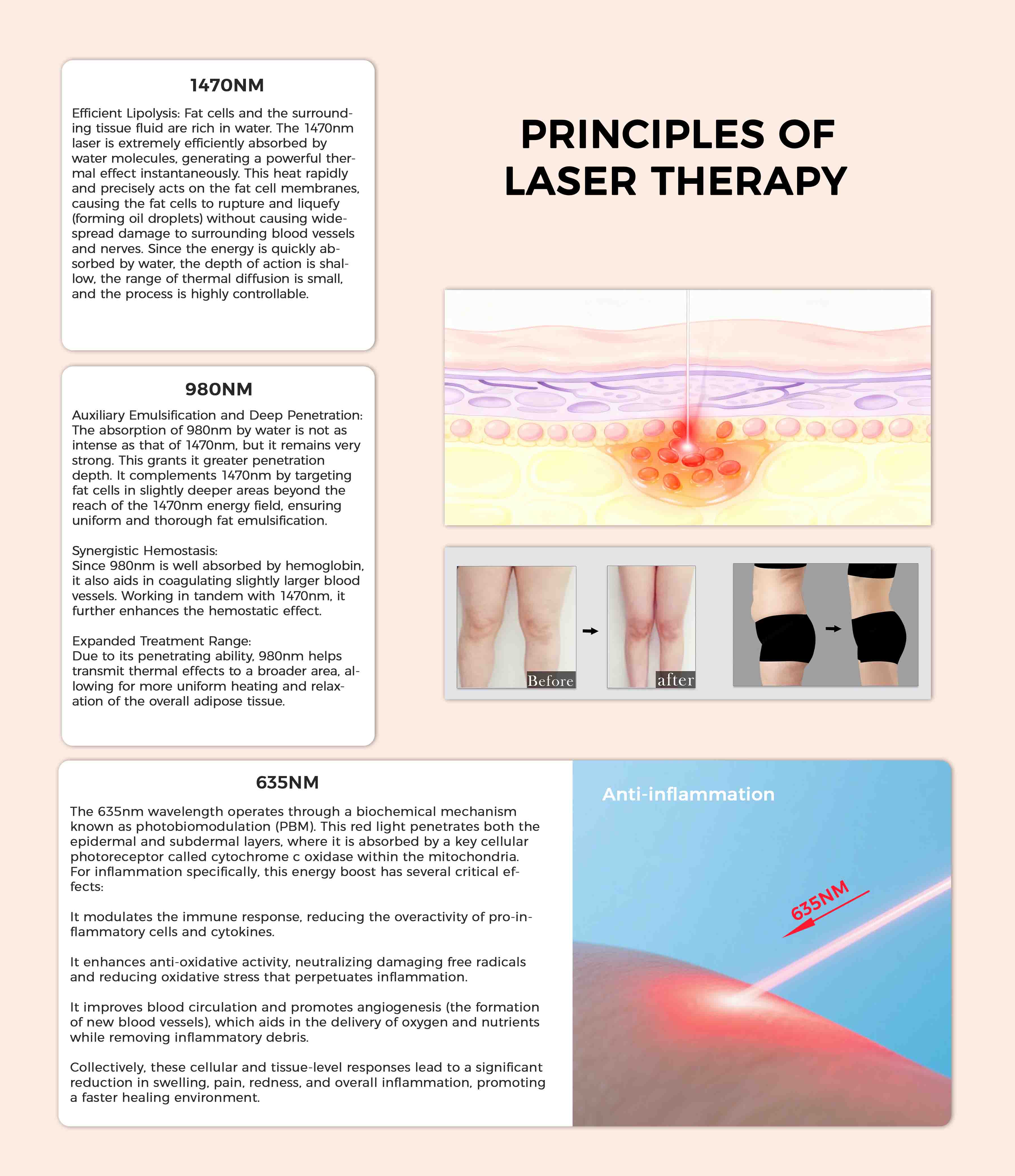

Core Working Principle Of Three Laser Wavelengths
The combination of 980nm, 1470nm and 635nm wavelengths forms a complementary and efficient therapeutic system, each wavelength carries exclusive targeted treatment advantages.
1470nm Laser — Main Efficient Lipolysis Core
Human fat tissue contains abundant water content, and 1470nm laser owns optimal water absorption rate inside body tissues. It generates strong thermal and photoacoustic effects to break and liquefy fat cells steadily. The energy absorption depth is controllable with limited thermal diffusion range, which effectively avoids damage to surrounding normal tissues, nerves and vessels during fat dissolving process. It ensures safe and precise endolaser lipolysis performance.
980nm Laser — Deep Penetration & Hemostasis Assistance
980nm wavelength features excellent hemoglobin absorption and maximum 16mm deep tissue penetration. It perfectly matches 1470nm laser to emulsify subcutaneous fat evenly and thoroughly. Meanwhile, it achieves reliable blood vessel coagulation and hemostatic effect, greatly lowering bleeding risks during surgical and lipolysis treatment. It also spreads thermal energy evenly to relax treated soft tissues and expand effective treatment coverage.
Dual 980nm+1470nm Synergy Advantage
The matched dual wavelengths realize shallow controlled ablation area without hurting adjacent tissues. The coordinated fat dissolving and hemostatic performance guarantees high safety and stable clinical effect, becoming the preferred combination for minimally invasive endolaser surgery and body shaping.
635nm Laser — Photobiomodulation Anti-Inflammation
635nm red light works based on photobiomodulation mechanism. It penetrates epidermis and dermis to activate mitochondrial cytochrome oxidase, regulating human immune response and restraining excessive inflammatory cells and cytokines.
This wavelength boosts antioxidant activity to eliminate harmful free radicals, accelerates blood circulation and new blood vessel growth. It effectively relieves swelling, pain and redness, speeds up wound and inflammatory tissue repair. Clinically, it treats acne, skin ulcers, chronic inflammatory wounds and infectious lesions safely and painlessly with fast healing outcome.
Comprehensive Treatment Functions
-
Lipolysis & Body Shaping
Minimally invasive fat dissolving, double chin reduction, local body contouring, only available under 980nm+1470nm combined mode. -
Vascular Lesion Removal
Eliminate spider veins, facial redness and varicose veins, improve abnormal blood vessel skin problems. -
Physical Pain Relief Therapy
Relieve joint and muscle soreness, assist sports injury rehabilitation and chronic pain improvement. -
Skin Rejuvenation & Anti-Inflammation
Stimulate collagen regeneration, lift and tighten loose skin, fade inflammation and accelerate skin wound recovery. -
Fungal & Skin Lesion Care
Remove nail fungus, relieve eczema and herpes symptoms, repair damaged skin tissue. -
Auxiliary Ice Compress Care
Equipped with extra ice compress hammer to soothe skin and reduce postoperative discomfort.
Convenient Operation Features
- Anti-inflammation function supports direct gear energy output, no foot pedal required
- Lipolysis mode provides adjustable parameters including pulse width, power and frequency, equipped with independent START and PAUSE buttons
- Dual optional working modes: Pulse mode and Continuous mode
- Multilingual system, default English, custom language available via OEM service
- Simple touch screen control, easy operation for professional therapists
Detailed Technical Parameters
| Item | Specification |
|---|---|
| Laser Wavelength | 980nm + 1470nm + 635nm |
| Output Mode | Fiber-optic coupling |
| Pulse Width | 15ms — 60ms |
| Working Frequency | 1-9Hz |
| Aiming Beam | 650nm |
| Operation Mode | Pulse / Continuous mode |
| Input Voltage | AC 100-240V, 50/60Hz |
| Output Power | 980nm:30W, 1470nm:3W, 635nm:12 adjustable gears |
| Touch Screen Size | 12.1 inch |
| Fiber Length | 3m |
| Cooling System | Air cooling |
| Net / Gross Weight | 8kg / 13kg |
| Machine Size | 380mm370mm260mm |
| Flight Case Size | 460mm440mm340mm |
Complete Standard Accessories
- Main laser treatment instrument
- SMA-905 optical fiber: optional 200um / 400um / 600um / 800um
- Protective glasses: green for 980&1470nm, blue for 635nm
- Professional eye mask
- Treatment handle & needles: optional sizes 0cm /5cm /15cm /16cm /16.5cm /20cm
- Universal foot pedal and power cord adaptable to global power grid
- User manual, storage rod
- Shockproof portable flight case
Custom Policy
- Flexible OEM & ODM customization, free brand logo design
- Minimum Order Quantity: 1 piece, support retail and bulk order
Manufacturer Strength & Service Advantage
The MNLT triple wavelength endolaser laser machine is produced by Shandong Moonlight Electronic Technology Co., Ltd. Our company is located in Weifang City, China, famous as the world’s kite capital. We have focused on R&D, production, sales and after-sales service of professional aesthetic medical equipment for 18 years, devoting to supplying reliable and innovative devices for global beauty and medical industry.
Our core competitive strengths:
- International standard dust-free production workshop, strict quality inspection
- Custom OEM & ODM service with free logo design support
- Full ISO, CE, FDA authoritative certifications, meet global market access standards
- 2-year official warranty and 24-hour online professional after-sales technical support
Contact & Cooperation
This multi-functional 3-wavelength endolaser lipolysis laser machine covers mainstream aesthetic and clinical treatment demands, bringing stable profit growth for beauty institutions and medical clinics. Welcome global distributors and salon owners to inquire product details, real machine videos and exclusive wholesale price.
Click Learn More to get customized cooperation solution!
